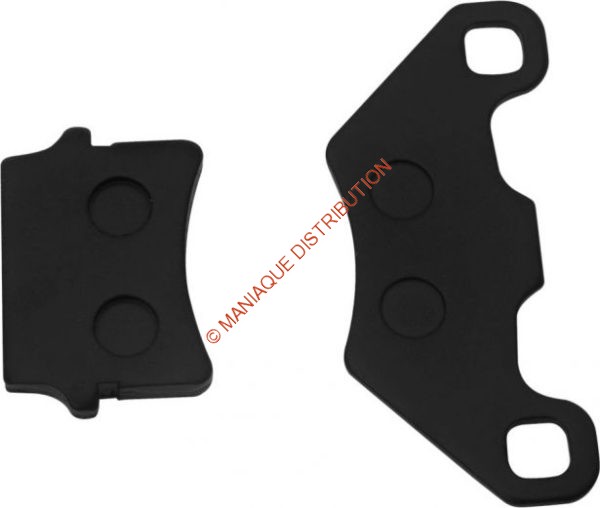

Brake Pads – 50cc to 250cc / 90A1000

24.99$

SKU: 90A1000 Category:
Description
Most commonly (though not exclusively) used as brake pad set for smaller ATVs in the 50cc to 150cc range (50cc, 80cc, 90cc, 110cc, 125cc and 150cc). Approximate dimensions:

  • Large Pad:
  • Total Length: 85.1mm
  • Total Width: 38.9mm
  • Alignment Holes: 9.5mm x 9.2mm
  • Alignment Hole Spacing: 68.2mm (center to center)
  • Small Pad:
  • Total Length: 47.9mm
  • Total Length (excluding tabs): 41.6mm
  • Total Width: 31.7mm
    Associated Parts:

  • 90A7060 Brake Caliper
